DVA35-DVG35 SERIES
Directional Control Valve
·Built-in, full flow relief valves
·Parallel and series circuits in one bank
·Manual, hydraulic, electric or pneumatic operation
·Sectional construction for maximum flexibility
·Spool changeover capability for right or left
hand valve assemblies
·Low spool effort - improved metering
·Flow up to 70 GPM
Rated pressure of DVA35 : 2500 PSI
Rated pressure of DVG35 : 3500 PSI
Work Section
Application Spool Selection.
·Cylinder type spool : a and b work ports are blocked in the neutral position.
·Motor type spool : a and b work ports are open to the tank passage in the neutral position.
·Single acting cylinder spool : a port is blocked in neutral and there is no b port.

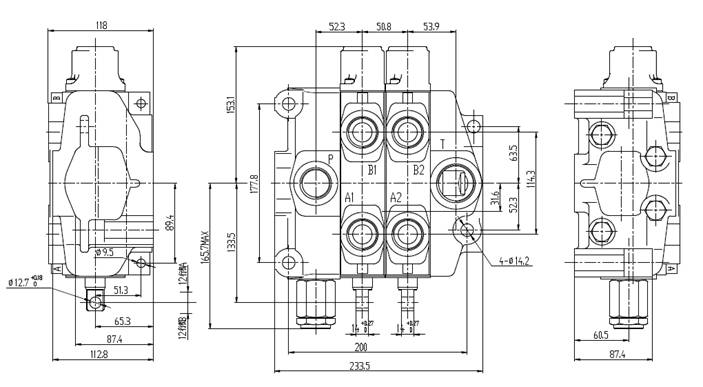

Dimensional Date
