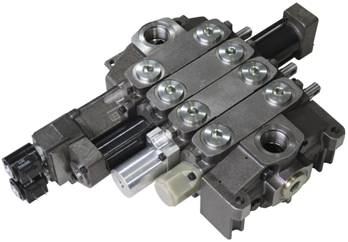

DVA20-DVG20  SERIES

   Directional Control Valve

·Built-in, full flow relief valves

·Parallel and series circuits in one bank

·Manual, hydraulic, electric or pneumatic operation

·Sectional construction for maximum flexibility

·Spool changeover capability for right or left

hand valve assemblies

·Low spool effort - improved metering

·Flow up to 40 GPM

Rated pressure of DVA20 : 2500 PSI

Rated pressure of DVG20 : 3500 PSI

Work Section

Application Spool Selection.

·Cylinder type spool : a and b work ports are blocked in the neutral position.

·Motor type spool : a and b work ports are open to the tank passage in the neutral position.

·Single acting cylinder spool : a port is blocked in neutral and there is no b port.

Dimensional Date：
