PGP/PGM620 Series
Heavy-Duty Cast Iron Pumps and Motors
·Pressure balanced design for high efficiency
·High power through-drive capability .
·Reduced system noise levels compared to earlier
models and competitors' pumps
·Displacement range :16ml/r -52 ml/r，
Continuous operating pressures up to 275 bar，
Speed range :500-3500 RPM .

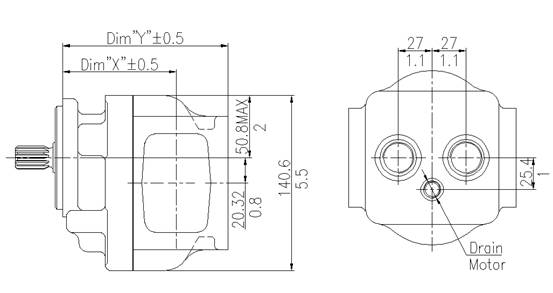

Specification - Standard Displacements - Single Unit
|
Pump
Displac-ement |
code |
0160 |
0190 |
0210 |
0230 |
0260 |
0290 |
0330 |
0360 |
0370 |
0410 |
0440 |
0460 |
0500 |
0520 |
|
cm³
/rev |
16 |
19 |
21 |
23 |
26 |
29 |
33 |
36 |
37 |
41 |
44 |
46 |
50 |
52 |
|
in³ /rev |
0.98 |
1.16 |
1.28 |
1.4 |
1.6 |
1.8 |
2.01 |
2.2 |
2.3 |
2.5 |
2.7 |
2.8 |
3.1 |
3.2 |
|
Continuous
Pressure |
bar |
275 |
275 |
275 |
275 |
275 |
275 |
275 |
250 |
250 |
220 |
210 |
210 |
210 |
210 |
|
psi |
4000 |
3600 |
3200 |
3050 |
|
Intermitt-ent Press. |
bar |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
275 |
275 |
245 |
230 |
220 |
210 |
210 |
|
psi |
4350 |
4000 |
3500 |
3300 |
3200 |
3050 |
|
Min Speed |
rpm |
500 @ Max. outlet press. |
|
Max Speed |
3500@ 0 Inlet & Max. outlet press. |
3000 |
|
Dimension "X" |
mm |
79.2 |
82.5 |
84.7 |
86.9 |
90.2 |
93.5 |
97.9 |
101 |
102 |
107 |
110 |
112 |
117 |
119 |
|
in |
3.1 |
3.2 |
3.3 |
3.4 |
3.6 |
3.7 |
3.9 |
4 |
4 |
4.2 |
4.3 |
4.4 |
4.6 |
4.7 |
|
Dimension "Y" |
mm |
120 |
124 |
126 |
128 |
131 |
134 |
139 |
142 |
143 |
148 |
151 |
153 |
158 |
160 |
|
in |
4.7 |
4.9 |
4.9 |
5 |
5.2 |
5.3 |
5.5 |
5.6 |
5.6 |
5.8 |
5.9 |
6 |
6.2 |
6.3 |
|
Approx. Weight |
kg |
12 |
12.1 |
12.1 |
12.2 |
12.3 |
12.6 |
12.7 |
12.8 |
12.9 |
13 |
13.1 |
13.2 |
13.3 |
13.4 |
|
lb |
26.4 |
26.6 |
26.6 |
26.8 |
27.1 |
27.7 |
27.9 |
28.1 |
28.4 |
28.6 |
28.8 |
29.4 |
29.3 |
29.5 |

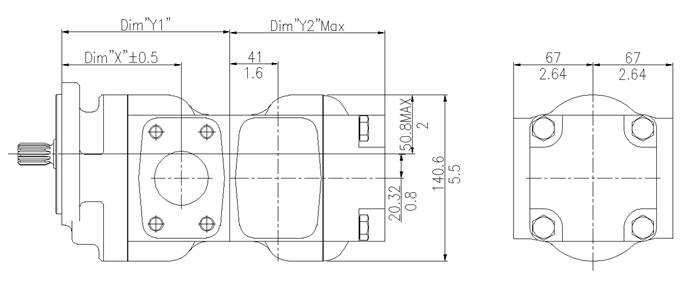

Specification - Standard Displacements - Tandem Unit
|
|
code |
0160 |
0190 |
0210 |
0230 |
0260 |
0290 |
0330 |
0360 |
0370 |
0410 |
0440 |
0460 |
0500 |
0520 |
|
Dimension "X" |
mm |
79.2 |
82.5 |
84.7 |
86.9 |
90.2 |
93.5 |
97.9 |
101 |
102 |
107 |
110 |
112 |
117 |
119 |
|
in |
3.1 |
3.2 |
3.3 |
3.4 |
3.5 |
3.7 |
3.9 |
4 |
4 |
4.2 |
4.3 |
4.4 |
4.6 |
4.7 |
|
Dimension "Y1" |
mm |
120 |
124 |
126 |
128 |
131 |
135 |
139 |
142 |
143 |
148 |
151 |
153 |
158 |
160 |
|
in |
4.7 |
4.9 |
4.9 |
5 |
5.2 |
5.3 |
5.5 |
5.6 |
5.6 |
5.8 |
5.9 |
6 |
6.2 |
6.3 |
|
Dimension "Y2" |
mm |
115 |
119 |
121 |
123 |
126 |
130 |
134 |
137 |
138 |
143 |
146 |
148 |
153 |
155 |
|
in |
4.5 |
4.7 |
4.8 |
4.8 |
5 |
5.1 |
5.3 |
5.4 |
5.4 |
5.6 |
5.7 |
5.8 |
6 |
6.1 |
|
Weight
(front section) |
kg |
12 |
12.1 |
12.1 |
12.2 |
12.3 |
12.6 |
12.7 |
12.8 |
12.9 |
13 |
13.1 |
13.2 |
13.3 |
13.4 |
|
lb |
26.4 |
26.6 |
26.6 |
26.8 |
27.1 |
27.7 |
27.9 |
28.2 |
28.4 |
28.6 |
28.8 |
29.0 |
29.3 |
29.5 |
|
Weight
(rear section) |
kg |
10.4 |
10.5 |
10.5 |
10.6 |
10.7 |
11.0 |
11.1 |
11.2 |
11.3 |
11.4 |
11.5 |
11.6 |
11.7 |
11.8 |
|
lb |
22.9 |
23.1 |
23.1 |
23.3 |
23.5 |
24.2 |
24.4 |
24.6 |
24.9 |
25.1 |
25.3 |
25.5 |
25.7 |
26.0 |
PERFORMANCE
|
Speed rpm |
Units |
Displacement / Maximum Allowable Continuous Pressure |
|
cc |
19 |
23 |
26 |
29 |
33 |
37 |
41 |
44 |
50 |
|
in3 |
1.16 |
1.4 |
1.59 |
1.77 |
2.01 |
2.26 |
2.5 |
2.75 |
3.05 |
|
bar |
275 |
275 |
275 |
275 |
275 |
250 |
220 |
210 |
210 |
|
psi |
3989 |
3989 |
3989 |
3989 |
3989 |
3626 |
3191 |
3046 |
3046 |
|
900 |
lpm |
16.2 |
19.6 |
22.1 |
24.7 |
28.1 |
31.5 |
34.9 |
37.4 |
42.5 |
|
gpm |
4.3 |
5.2 |
5.8 |
6.5 |
7.4 |
8.3 |
9.2 |
9.9 |
11.2 |
|
kw |
8.4 |
10.2 |
11.5 |
12.9 |
14.6 |
14.9 |
14.5 |
14.9 |
16.9 |
|
hp |
11.3 |
13.7 |
15.5 |
17.2 |
19.6 |
20 |
19.5 |
20 |
22.7 |
|
1200 |
lpm |
21.7 |
26.1 |
29.5 |
32.9 |
37.4 |
42 |
46.5 |
49.9 |
56.7 |
|
gpm |
5.7 |
6.9 |
7.8 |
8.7 |
9.9 |
11.1 |
12.3 |
13.2 |
15 |
|
kw |
11.2 |
13.6 |
15.4 |
17.2 |
19.5 |
19.9 |
19.4 |
19.9 |
22.6 |
|
hp |
15.1 |
18.2 |
20.6 |
23 |
26.2 |
26.7 |
26 |
26.6 |
30.3 |
|
1500 |
lpm |
27.2 |
32.9 |
37.2 |
41.5 |
47.3 |
53 |
58.7 |
63 |
71.6 |
|
gpm |
7.2 |
8.7 |
9.8 |
11 |
12.5 |
14 |
15.5 |
16.7 |
18.9 |
|
kw |
14.2 |
17.2 |
19.4 |
21.7 |
24.7 |
25.1 |
24.5 |
25.1 |
28.5 |
|
hp |
19 |
23 |
26.1 |
29.1 |
33.1 |
33.7 |
32.9 |
33.7 |
38.3 |
|
1800 |
lpm |
32.8 |
39.7 |
44.9 |
50.1 |
57 |
63.9 |
70.8 |
76 |
86.4 |
|
gpm |
8.7 |
10.5 |
11.9 |
13.2 |
15.1 |
16.9 |
18.7 |
20.1 |
22.8 |
|
kw |
17 |
20.6 |
23.3 |
26 |
29.6 |
30.2 |
29.4 |
30.1 |
34.2 |
|
hp |
22.8 |
27.7 |
31.3 |
34.9 |
39.7 |
40.4 |
39.4 |
40.4 |
45.9 |
|
2100 |
lpm |
38.5 |
46.6 |
52.7 |
58.8 |
66.9 |
75 |
83.1 |
89.2 |
101.3 |
|
gpm |
10.2 |
12.3 |
13.9 |
15.5 |
17.7 |
19.8 |
21.9 |
23.6 |
26.8 |
|
kw |
20.1 |
24.3 |
27.5 |
30.7 |
34.9 |
35.6 |
34.7 |
35.5 |
40.4 |
|
hp |
26.9 |
32.6 |
36.9 |
41.1 |
46.8 |
47.7 |
46.5 |
47.7 |
54.2 |
|
2400 |
lpm |
44.2 |
53.5 |
60.5 |
67.5 |
76.8 |
86.1 |
95.4 |
102.4 |
116.4 |
|
gpm |
11.7 |
14.1 |
16 |
17.8 |
20.3 |
22.8 |
25.2 |
27.1 |
30.7 |
|
kw |
23.2 |
28.1 |
31.8 |
35.4 |
40.3 |
41.1 |
40.1 |
41.1 |
46.7 |
|
hp |
31.1 |
37.7 |
42.6 |
47.5 |
54.1 |
55.1 |
53.8 |
55.1 |
62.6 |
|
2700 |
lpm |
49.8 |
60.2 |
68.1 |
76 |
86.4 |
96.9 |
107.4 |
115.2 |
131 |
|
gpm |
13.1 |
15.9 |
18 |
20.1 |
22.8 |
25.6 |
28.4 |
30.4 |
34.6 |
|
kw |
26.4 |
32 |
36.2 |
40.3 |
45.9 |
46.8 |
45.6 |
46.7 |
53.1 |
|
hp |
35.4 |
42.9 |
48.5 |
54.1 |
61.5 |
62.7 |
61.2 |
62.7 |
71.2 |
|
3000 |
lpm |
55.3 |
66.9 |
75.7 |
84.4 |
96 |
107.7 |
119.3 |
128 |
145.5 |
|
gpm |
14.6 |
17.7 |
20 |
22.3 |
25.4 |
28.4 |
31.5 |
33.8 |
38.4 |
|
kw |
29.7 |
35.9 |
40.6 |
45.3 |
51.6 |
52.6 |
51.3 |
52.5 |
59.7 |
|
hp |
39.8 |
48.2 |
54.5 |
60.8 |
69.1 |
70.5 |
68.7 |
70.4 |
80 |
