H20/21 SERIES
Medium displacement roller bearing pump and motor
·Standardization, universalization , serialization design .Connecting
dimensions are SAE standard, multiple assemblies are available.
·Displacement range :16.4ml/r -64.6 ml/r，
Max rated pressure : 207bar，Intermittent :245bar，
Speed range :600-2400 RPM .
PERFORMANCE
Bearing series pressure and displacement
|
CODE |
05 |
07 |
10 |
12 |
15 |
17 |
20 |
|
Gear Width |
1/2＂ |
3/4＂ |
1＂ |
1-1/4＂ |
1-1/2＂ |
1-3/4＂ |
2＂ |
|
Displacement |
0.98 |
1.48 |
1.97 |
2.47 |
2.95 |
3.45 |
3.94 |
|
16.1 |
24.2 |
32.3 |
40.4 |
48.4 |
56.5 |
64.6 |
|
Max Pressure |
30 |
2500 |
2500 |
2500 |
2500 |
2500 |
2250 |
2250 |
|
172 |
172 |
172 |
172 |
172 |
155 |
155 |
|
31 |
3000 |
3000 |
3000 |
3000 |
3000 |
2500 |
2500 |
|
207 |
207 |
207 |
207 |
207 |
172 |
172 |
|
Speed RPM |
600-2400 |
Flow : GPM/LPM Pressure : PSI/bar
P20/21 Flow and Power data at 2500 PSI (172 bar)
|
Speed
RPM |
Gear Width Output (gpm/lpm) and Inches (HP/kW) |
|
1＂ |
1-1/4＂ |
1-1/2＂ |
1-3/4＂ |
2＂ |
|
Flow |
Power |
Flow |
Power |
Flow |
Power |
Flow |
Power |
Flow |
Power |
|
900 |
24.5 |
11 |
30 |
13 |
38 |
15 |
45.5 |
17 |
51 |
19 |
|
6.5 |
14 |
8 |
17 |
10 |
20 |
12 |
23 |
13.5 |
25 |
|
1200 |
34 |
14 |
43.5 |
17 |
53 |
20 |
60.5 |
22 |
70 |
25 |
|
9 |
19 |
11.5 |
22 |
14 |
26 |
16 |
30 |
18.5 |
33 |
|
1500 |
43.5 |
17 |
55 |
21 |
66 |
24 |
77.5 |
27 |
89 |
31 |
|
11.5 |
23 |
14.5 |
28 |
17.5 |
33 |
20.5 |
37 |
23.5 |
42 |
|
1800 |
53 |
20 |
68 |
25 |
81.5 |
29 |
94.5 |
27 |
110 |
37 |
|
14 |
27 |
18 |
33 |
21.5 |
39 |
25 |
44 |
29 |
50 |
|
2100 |
62.5 |
24 |
79.5 |
29 |
94.5 |
34 |
112 |
38 |
129 |
43 |
|
16.5 |
32 |
21 |
38 |
25 |
45 |
29.5 |
51 |
34 |
58 |
|
2400 |
72 |
26 |
91 |
33 |
110 |
38 |
129 |
43 |
148 |
49 |
|
19 |
36 |
24 |
44 |
29 |
51 |
34 |
58 |
39 |
66 |
Flow : GPM/LPM Power : HP/kW
M21 Motor performance data at 2500 PSI (172 bar).
|
Speed
RPM |
Torque: In.-lbs. / Nm Flow: GPM/LPM Power: HP/KW |
|
1＂ |
1-1/2＂ |
2＂ |
|
Output |
Input |
Output |
Input |
Output |
Input |
|
Torque |
Power |
Flow |
Torque |
Power |
Flow |
Torque |
Power |
Flow |
|
800 |
675 |
8.5 |
9 |
1035 |
13 |
13 |
1385 |
17.5 |
17 |
|
76.5 |
6.5 |
34 |
117 |
9.5 |
49 |
156.5 |
13 |
64.5 |
|
1200 |
685 |
13 |
13 |
1055 |
20 |
18 |
1410 |
27 |
23.5 |
|
77.5 |
9.5 |
49 |
119 |
15 |
68 |
159.5 |
20 |
89 |
|
1600 |
680 |
17.5 |
16 |
1030 |
26 |
23 |
1390 |
35 |
30.5 |
|
77 |
13 |
60.5 |
116.5 |
19.5 |
87 |
157 |
26 |
115 |
|
2000 |
660 |
21 |
19.5 |
1010 |
32 |
28 |
1370 |
43.5 |
37 |
|
74.5 |
15.5 |
74 |
114 |
24 |
106 |
155 |
32.5 |
140 |
Torque : In.-lbs./Nm Flow : GPM/LPM Power : HP/kW
Performance data shown are the average results based on a series of laboratory tests of production units and are not necessarily representative of any one unit. Tests were run with the oil reservoir temperature at 120F and viscosity 150 SSU at 100F. Requests for more specific data should be directed to our Product Support Department through our sales representatives.

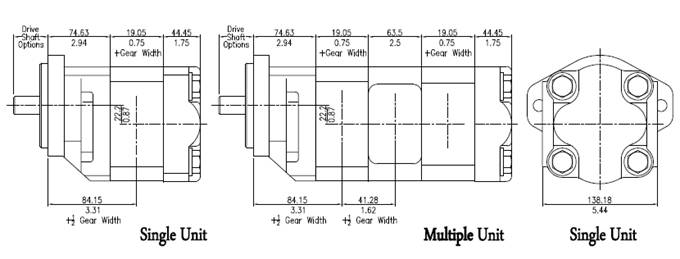

Dimensional Date
