Bushing bearings series H330 hydraulic gear pump (motor)
Features:
·High strength, perfect efficiency, long wear life, suited for heavy load and wretched environment. It also has excellent performance in high temperature and low low viscosity situation.
·High strength Iron casting, external gear pump
·Antifriction bushing bearing
·Advanced pressure-balanced thrust plate and special seal structure.
·The pump (motor) has the characteristics of serialization, standardization, and generalization. Double and multiple assemblies are available. Pump and motor have a wide selection of mounting connection type, connection dimension is SAE standard.
HP330 Hydraulic Gear Pump Performance Data
|
Flow
mL/rev |
G.W
in |
Rated Pressure
MPa |
Max Pressure
MPa |
Speed
RPM
Highest lowest |
Input power KW |
|
16.1 |
1/2＂ |
24.1 |
28 |
2400 600 |
17 |
|
24.2 |
3/4＂ |
24.1 |
28 |
2400 600 |
25 |
|
32.3 |
1＂ |
24.1 |
28 |
2400 600 |
34 |
|
40.4 |
1 1/4＂ |
24.1 |
28 |
2400 600 |
42 |
|
48.4 |
1 1/2＂ |
24.1 |
28 |
2400 600 |
51 |
|
56.5 |
1 3/4＂ |
22.4 |
25.5 |
2400 600 |
55 |
|
64.6 |
2＂ |
20.7 |
24 |
2400 600 |
58 |
HM330 Hydraulic Motor Performance Data
|
Flow
ml/rev |
Iput flow
2400 RPM
LPM |
G.W
in |
Rated Pressure
MPa |
Max Pressure
MPa |
Speed
RPM
Highest lowest |
Output power
KW |
Otput troque
Nm |
|
32.3 |
71.8 |
1＂ |
20.7 |
24 |
2400 600 |
19.9 |
95 |
|
40.4 |
89.8 |
1 1/4＂ |
20.7 |
24 |
2400 600 |
24.9 |
118.9 |
|
48.4 |
107.6 |
1 1/2＂ |
20.7 |
24 |
2400 600 |
30 |
143.3 |
|
56.5 |
125.6 |
1 3/4＂ |
19 |
22 |
2400 600 |
32.1 |
153.3 |
|
64.6 |
143.6 |
2＂ |
16 |
19 |
2400 600 |
31 |
148 |
Instruction:
Performance data shown are the average results based on series of tests of production units
Testing situation: oil temperature:50℃: Oil Viscosity:31.8 cst@38℃
Unit Dimension

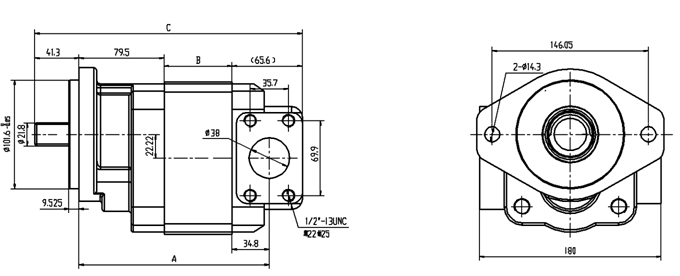

Single Pump、Motor
A=114.3+B
B=12.7+G.W
C=186.4+B

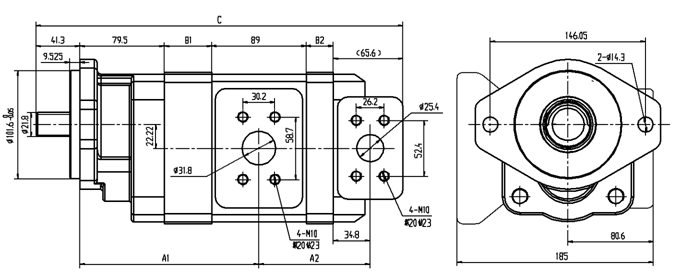

Doule Pump、Motor
A1=124+(B1/2)
A2=79.3+B2
B1=12.7+G.W
B2=12.7+G.W
C=275.4+B1+B2
