Roller Bearing H51 Series Hydraulic Gear Pump (Motor)

Current Location：Home - Product Center - Product display - Hydraulic pump / motor - Roller bearing series

Product Name：Roller Bearing H51 Series Hydraulic Gear Pump (Motor)
Product Id：21254-858
Update Time：2012.11.24
Views：

Overview Features Model Orders Certification

Bushing Bearing Series H51 Hydraulic Gear Pump (Motor)

Features:

·Compact structure, small volume, low noise, high pressure, wide flow range

·High strength Iron casting, external gear pump
·Second-seal structure, to improve pump’s performance.

·Thrust plate, with special structure and special surface treatment, make our pump better pressure-proof and antiwear.

·Special structure bearings, provide better capacity for heavy load and impaction.

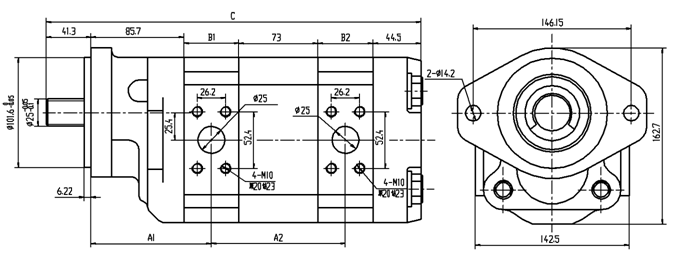

·The pump (motor) has the characteristics of serialization, standardization, and generalization. Double and multiple assemblies are available. Pump and motor have a wide selection of mounting connection type, connection dimension is SAE standard.

HP51 Hydraulic Gear Pump Performance Data

Flow mL/rev	G.W in	Rated pressure MPa	Max pressure MPa	Speed RPM Highest lowest	Input power KW
20.89	1/2＂	20.7	24.2	2400 600	20.2
31.34	3/4＂	20.7	24.2	2400 600	30.3
41.79	1＂	20.7	24.2	2400 600	40
52.24	1 1/4＂	20.7	24.2	2400 600	50
62.68	1 1/2＂	20.7	24.2	2400 600	59.6
73.13	1 3/4＂	20.7	24.2	2400 600	70
83.57	2＂	17.2	20.7	2400 600	66
94.02	2 1/4＂	17.2	20.7	2400 600	74
104.5	2 1/2＂	17.2	20.7	2400 600	82

HM51 Hydraulic Motor Performance Data

Flow mL/rev	input flow 2000RPM LPM	G.W in	Rated pressure MPa	Max pressure MPa	Speed RPM Highest lowest	输出功率 KW	Input power Nm
41.79	94.5	1＂	20.7	24.2	2200 600	26.1	124.5
62.68	140	1 1/2＂	20.7	24.2	2200 600	38.7	184.6
83.57	185	2＂	17.2	20.7	2200 600	42.7	204
104.5	233	2 1/2＂	17.2	20.7	2200 600	54	258
